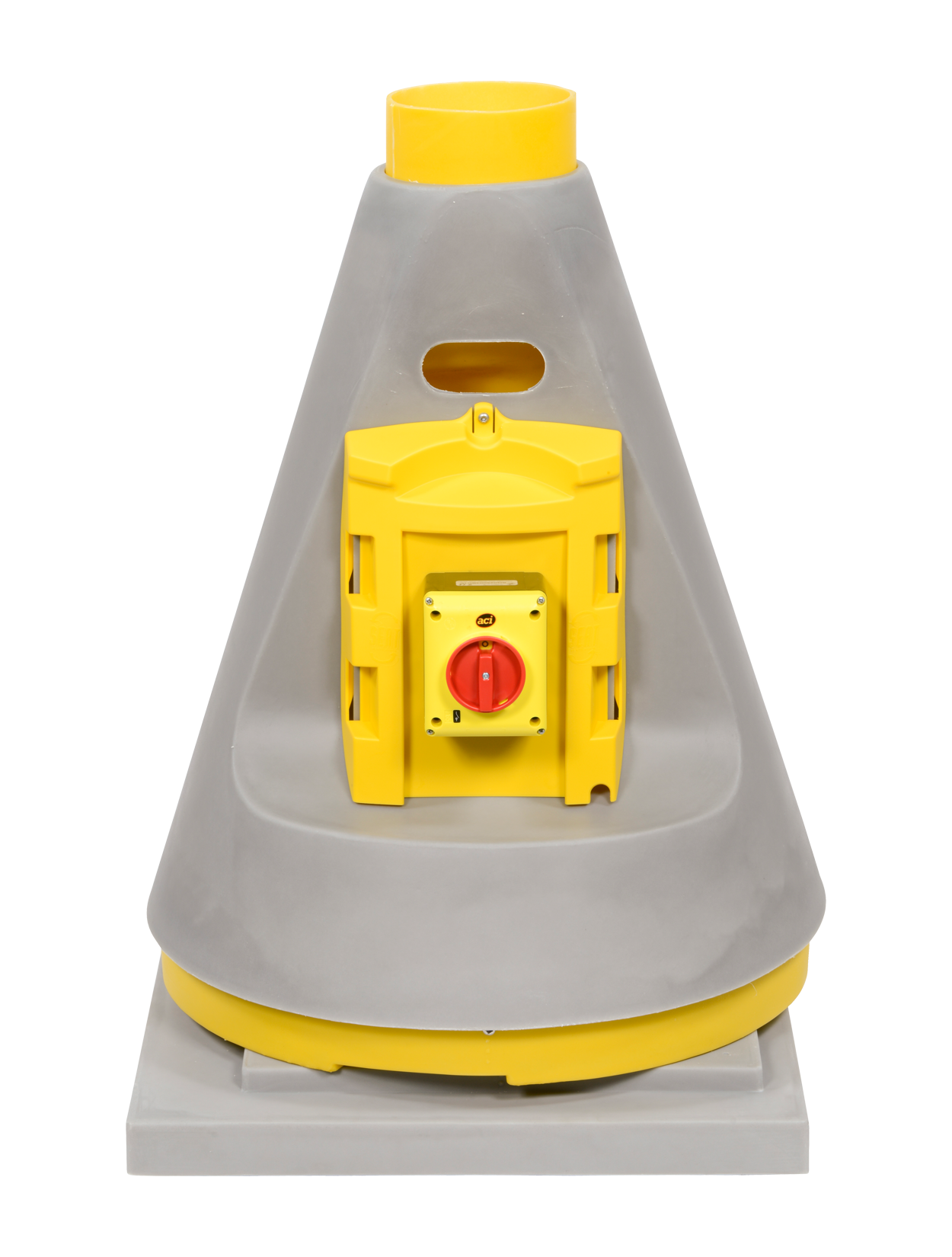

Jet 20 - This nicely packaged low noise unit as low at 64dB comes with an integrated weather hood, drain plug and a disconnect. Easy to install and is roof or wall mounted. Common applications are fume cabinet exhaust, water treatment, tank exhausts, and marine and salty environments as well as others. Hindered-Amine Light Stabilizers (HALS) for increase UV resistance.
Static Pressure Range: 0.3 to 3.5 WG
Flow Range: 300 to 800 CFM
Phase and Voltage: Single 115/230V & Three 230/460V
Sound Level (A): RPM 1150=64dB, RPM 1725-75dB, RPM 3450=93dB
TEFC Motor Option: Yes
Inlet/outlet Diameter: 6" (2x 6.62” transitions provide)
Drain Plug: Yes

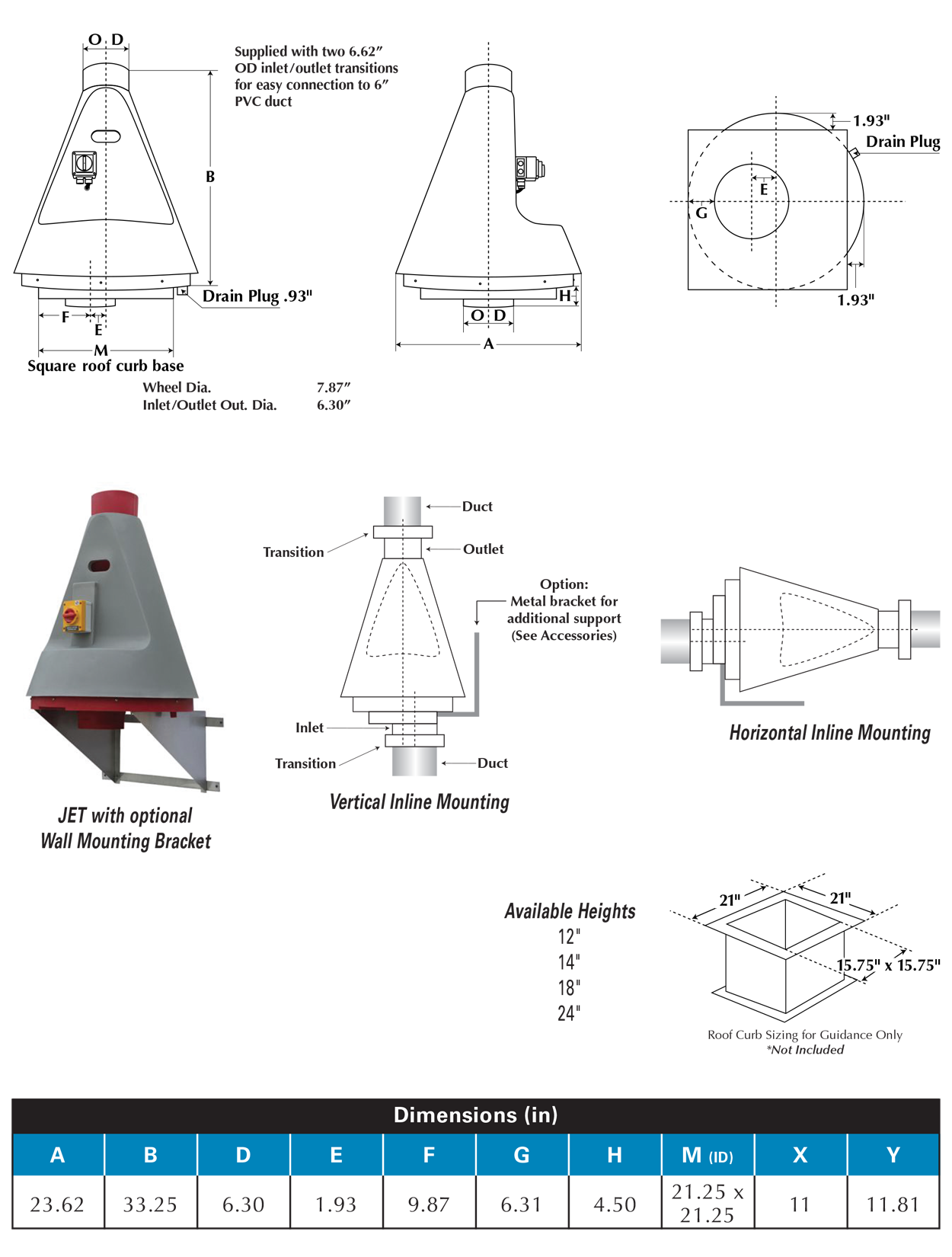

Mounting Options: Roof, Wall, Vertical, Horizontal
*Within reason, a reducer or coupler may be utilized to adapt to smaller or larger size
*Also available in XPFC * CIP corrosion-resistant with carbon Impregnated polypropylene for explosive atmosphere applications.

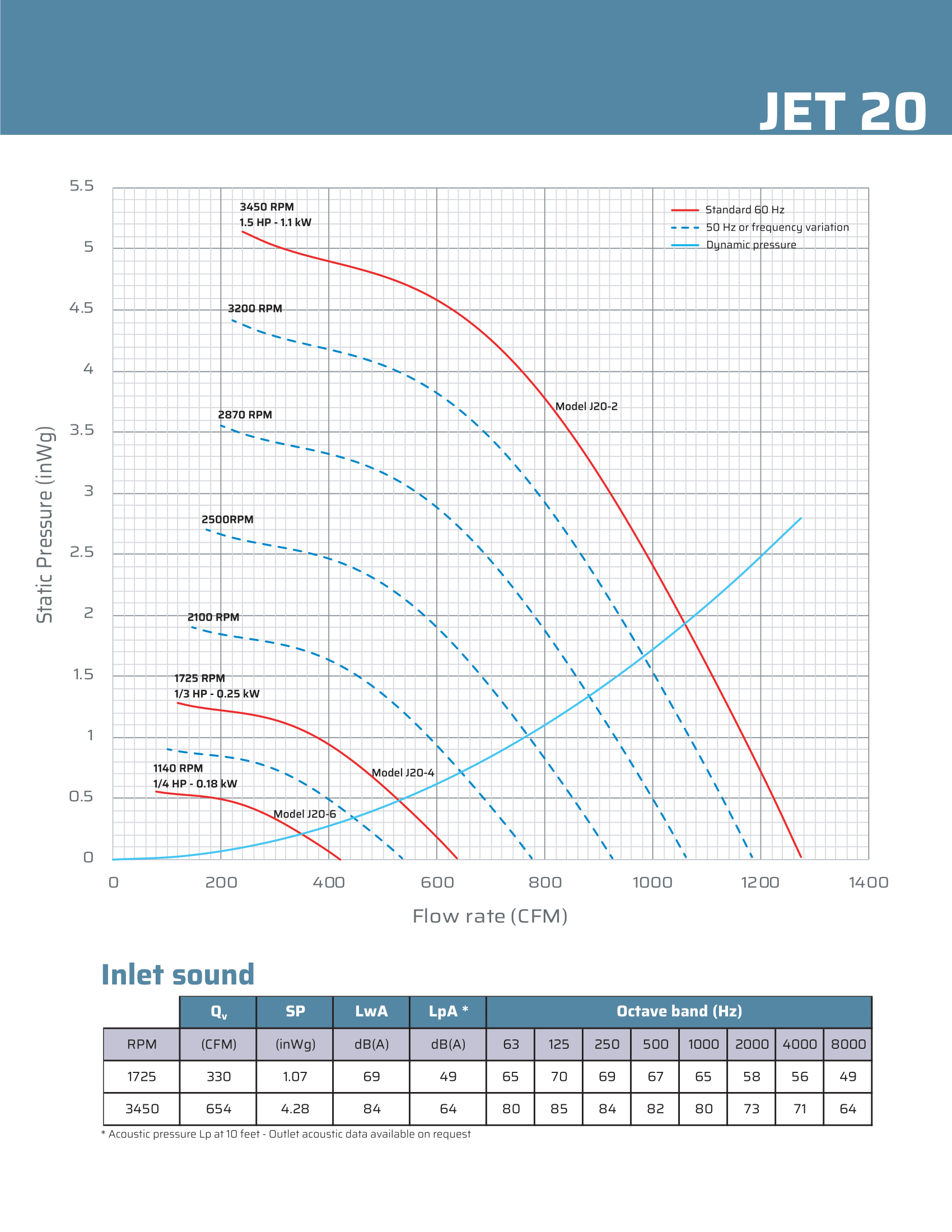

Test performance procedures for JET Series
PLASTEC Ventilation certifies that the JET Series shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program."
Performance certified is for installation type A – Free inlet, Free outlet. Performance ratings do not include the effects of appurtenances (accessories). Maximum fan input power over the range catalogued, or fan input power at the stated duty, or maximum motor input watts, voltage and frequency over the range catalogued, or motor input watts, voltage, and frequency at the state duty. – Rating Methods D.
The sound power level ratings shown are in decibels, referred to 10-12 watts, calculated per AMCA standard 301. Values shown are for inlet Lwi and LwiA sound power levels for installation Type A: Free inlet, Free outlet. Ratings do not include the effects of duct end correction. The A-weighted sound ratings shown have been calculated per AMCA International Standard 301. Sound pressure levels are not licensed by AMCA international.
